Wall Fans

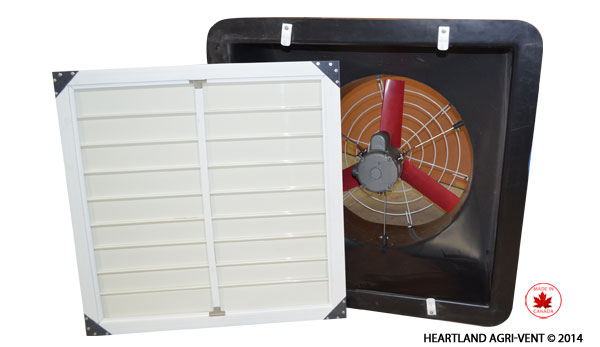

Heartland Agri-Vent wall fans are made with two steps, polyethylene and foamed polyethylene. The foamed polyethylene, on the inside of the fan, gives it a smooth surface for easy cleaning.

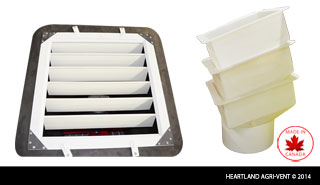

The customer has the option of a Baldor or Ziehl motor. All fans come in either black or white finish.

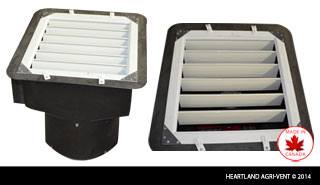

Heartland Agri-Vent wall fans are manufactured with a two inch slope from wall to end of exhaust allowing for drainage when washing with water. This does not restrict the effects of wind on the motor and fan blades so they will both have to work directly against the wind.
![]() |
![]() |
|
---|---|---|
![]() |
---|
Wall Fans Spec's
Baldor Motors/Wall Exhaust Fans | |||||
---|---|---|---|---|---|
Size | CFM 1/8 SP | Volts | Model # | Rough Opening | |
12" | 1310 | 115/230 | Hbwf - 1200 | 17.25" x 17.25" | |
16" | 2550 | 115/230 | Hbwf - 1600 | 23.375" x 23.375" | |
18" | 3030 | 115/230 | Hbwf - 1800 | 24.25" x 24.25" | |
20" | 4620 | 115/230 | Hbwf - 2000 | 26" x 26" | |
22" | 5000 | 115/230 | Hbwf - 2200 | 29" x 29" | |
25" | 6640 | 115/230 | Hbwf - 2500 | 32.75" x 32.75" | |
36" | 12000 | 115/230 | Hbwf - 3600 | 44.5" x 44.5" |
Ziehl-Fan and Motor Specifications | |||||
---|---|---|---|---|---|
Size | CFM 1/8 SP | Volts | Model # | Rough Opening | |
12" | 1300 | 230 | Hbwf - 1200 | 17.25" x 17.25" | |
16" | 2832 | 230 | Hbwf - 1600 | 23.375" x 23.375" | |
18" | 3953 | 230 | Hbwf - 1800 | 24.25" x 24.25" | |
20" | 5075 | 230 | Hbwf - 2000 | 26" x 26" | |
22" | 6050 | 230 | Hbwf - 2200 | 29" x 29" | |
25" | 7316 | 230 | Hbwf - 2500 | 32.75" x 32.75" | |
36" | 13270 | 230 | Hbwf - 3600 | 44.5" x 44.5" |
